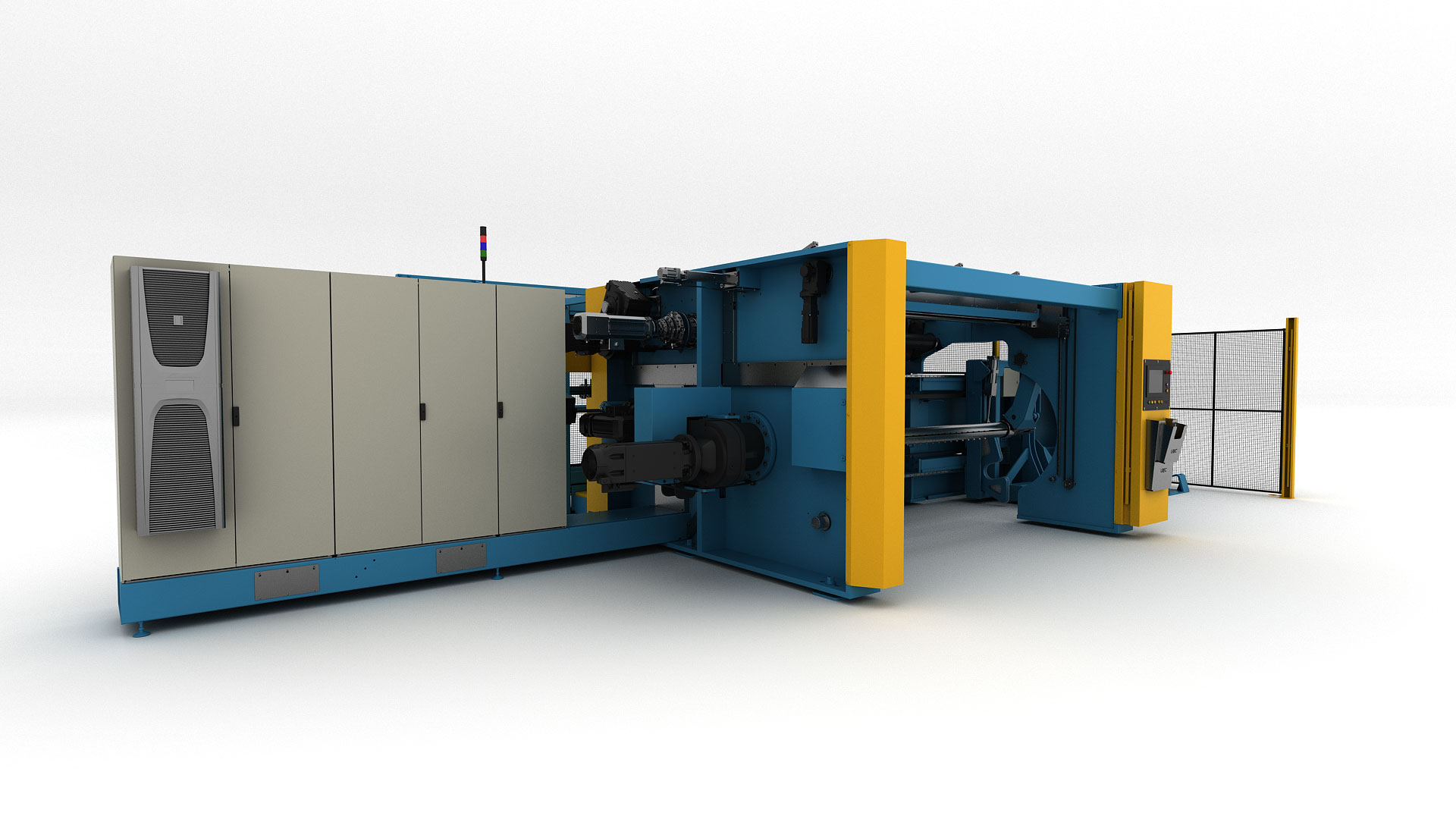

UMC Innovation FLM-10 Fence Lokk Machine

The only machine in the world capable of producing two different types of fence knots.

The patented UMC Innovation FLM-10 Fence Lokk Machine can produce both Fixed Lokk or Stay Lokk type fence on one Machine with minimal downtime when changing between different fence knots.

The FLM-10 fence lokk machine can be delivered with one set of tooling, for customers who only require one type of fence, or a second set of tooling can be purchased that will allow the machine to produce both types of fence knot.

There are two Machine sizes available; The 6’ft (1829mm) wide Machine can be controlled mechanically or electrically and the 10’ft (3048mm) wide Machine is controlled electrically.

Fence Lokk Machine
Fence Lokk Machine
Fence Lokk Machine
Fence Lokk Machine
Fence Lokk Machine
Fence Lokk Machine
Fence Lokk Machine
Fence Lokk Machine

Machine Function & Design

  • Two Machines In One

    The FLM Machine produces Fabricated Wire Fence in various roll sizes and knot types used for numerous applications from Livestock to Security and Exclusion Fencing.

  • Dual End Wire Feed

    Dual end wire feed systems allow for production of two fences at the same time.

  • Fast Change Overs

    Automated Crimp Drum allows for rapid changeovers when specification changes are required.

  • Roll Shuttle Design

    Roll shuttle allows for a controlled motion to layer the fence before the windup. This prevents the knots or line wires from ‘stacking’ on top of each other, keeping the roll diameter compact.

  • Continuous Production

    Finished rolls are automatically removed to the tie-off and pickup zone, allowing for continuous production. When the finished roll ends are secured, the roll clamp re-sets to the windup area.

  • Statistics & Telemetry

    Reporting module provides for Machine displayed operational status including faults, run hours, mechanical history. Mobile device compatible with remote distribution of reports.

Request an information pack for the Fence Lokk Machine

    Maintenance

    • Knot system requires fewer parts and less complexity
    • Quick change components for ease of maintenance and rapid replacement of wire contact area components
    • Additional height back-frame for better coiled wire payoff
    • Rockwell AB Automation and hardware used throughout
    • Automatic distribution of alerts or remote reports for faults and production data

    Operator

    • Integrated PLC Machine Safety with light curtains, laser scanner, and magnetic RFID guard sensing
    • Lifting operator platform for ease of wire threading
    • Front and rear HMI interfaces for operators with Hand wheel adjustment for slow speed operation and Machine set-up
    • Individual axis control over knot tying motion
    • Machine sits on feet allowing all-round access for cleaning and machine inspections

    Environmental

    • Machine flexibility means smaller factory footprint, fewer cables, air lines, required to produce two types of fence
    • Lower noise dB levels in factory

    Economic

    • Fixed Lokk production at up to 50bpm (stay wires per minute) is a 25% increase in productivity over other machines
    • Long roll length capability; roll size up to 1300mm diameter/1500kg maximum
    • Regenerative power convertors supply excess power back into the factory wide grid
    • Modular design requires less time to install and commission

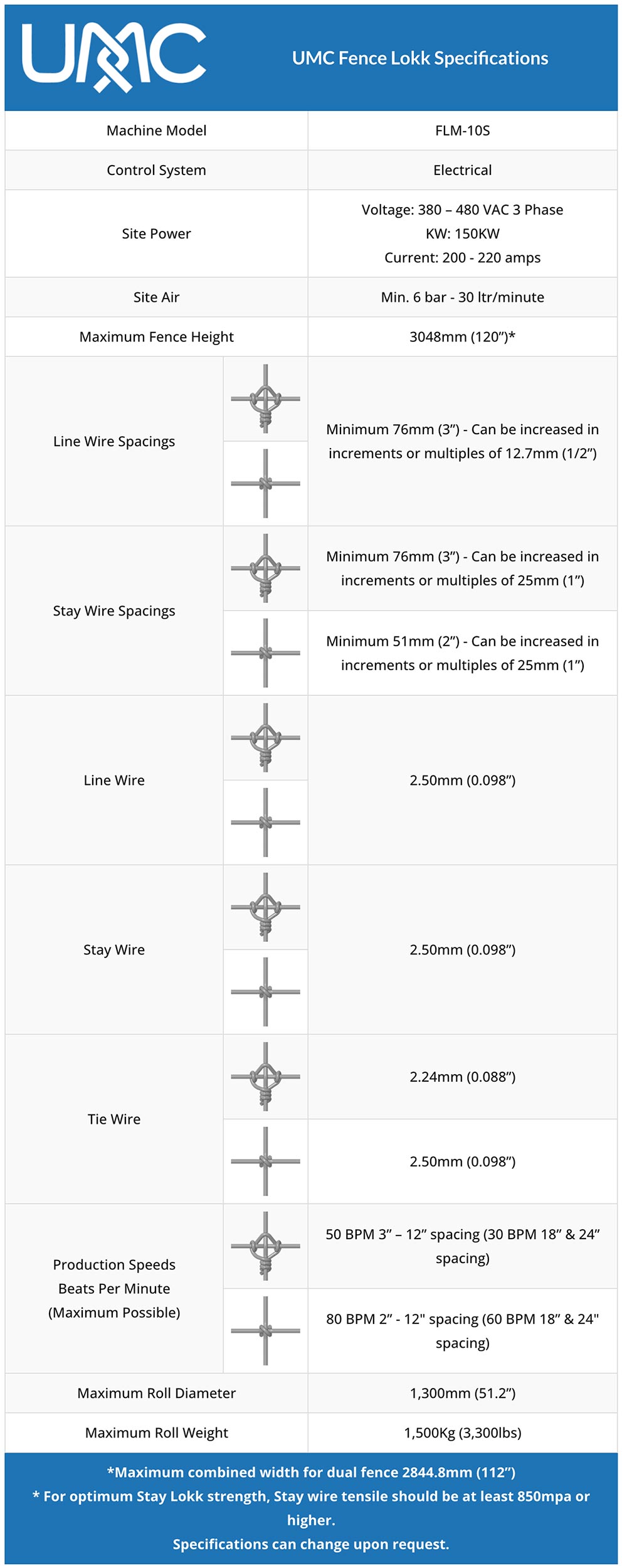

    UMC Fence Lokk Specifications
    Machine ModelFLM-10S
    Control SystemElectrical
    Site PowerVoltage: 380 – 480 VAC 3 Phase
    KW: 150KW
    Current: 200 - 220 amps
    Site AirMin. 6 bar - 30 ltr/minute
    Maximum Fence Height3048mm (120”)*
    Line Wire SpacingsMinimum 76mm (3”) - Can be increased in increments or multiples of 12.7mm (1/2”)
    Stay Wire SpacingsMinimum 76mm (3”) - Can be increased in increments or multiples of 25mm (1”)
    Minimum 51mm (2”) - Can be increased in increments or multiples of 25mm (1”)
    Line Wire2.50mm (0.098”)
    Stay Wire2.50mm (0.098”)
    Tie Wire2.24mm (0.088”)
    2.50mm (0.098”)
    Production Speeds
    Beats Per Minute
    (Maximum Possible)    		30 BPM – 3” & 18” – 24” spacing’s 50 BPM - 6” – 9” – 12” spacing’s
    60 BPM - 18” & 24" spacing’s 80 BPM - 2” - 12" spacing’s
    Maximum Roll Diameter1,300mm (51.2”)
    Maximum Roll Weight1,500Kg (3,300lbs)
    *Maximum combined width for dual fence 9’ 4” (2844.8mm)
    * For optimum Stay Lokk strength, Stay wire tensile should be at least 850mpa or higher.
    Specifications can change upon request.
    UMC Innovation FLM 10S Specifications

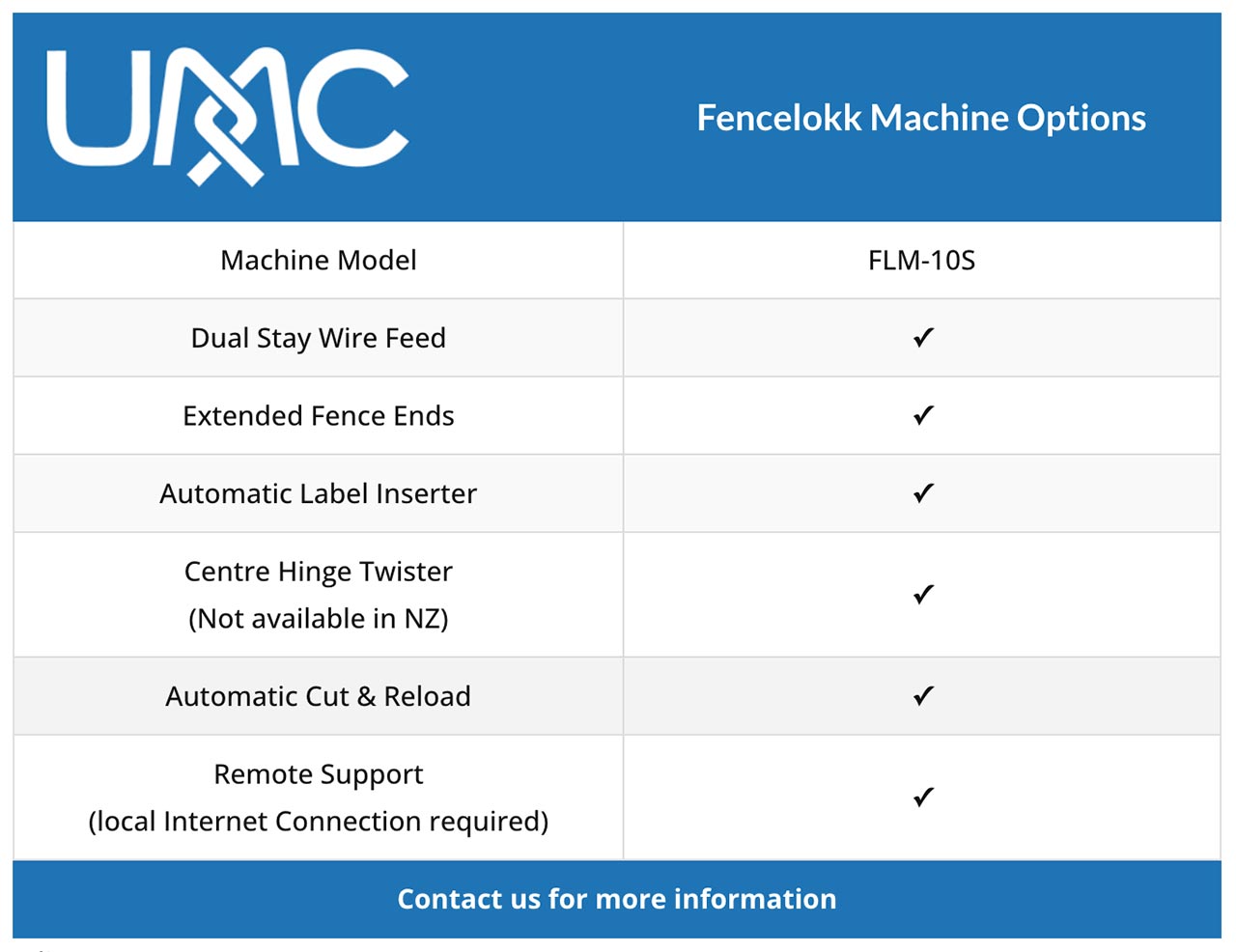

    Fencelokk Machine Options
    Machine ModelFLM-6MFLM-6SFLM-10S
    Dual Stay Wire Feed✓
    Extended Fence Ends✓✓
    Automatic Label Inserter✓✓
    Centre Hinge Twister
    (Not available in NZ)    		✓
    2.00mm (0.079”) 14.5 ga✓✓✓
    Automatic Cut & Reload✓✓
    Remote Support
    (local Internet Connection required)    		✓✓
    Contact us for more information
    UMC Innovation FLM 10S Options
